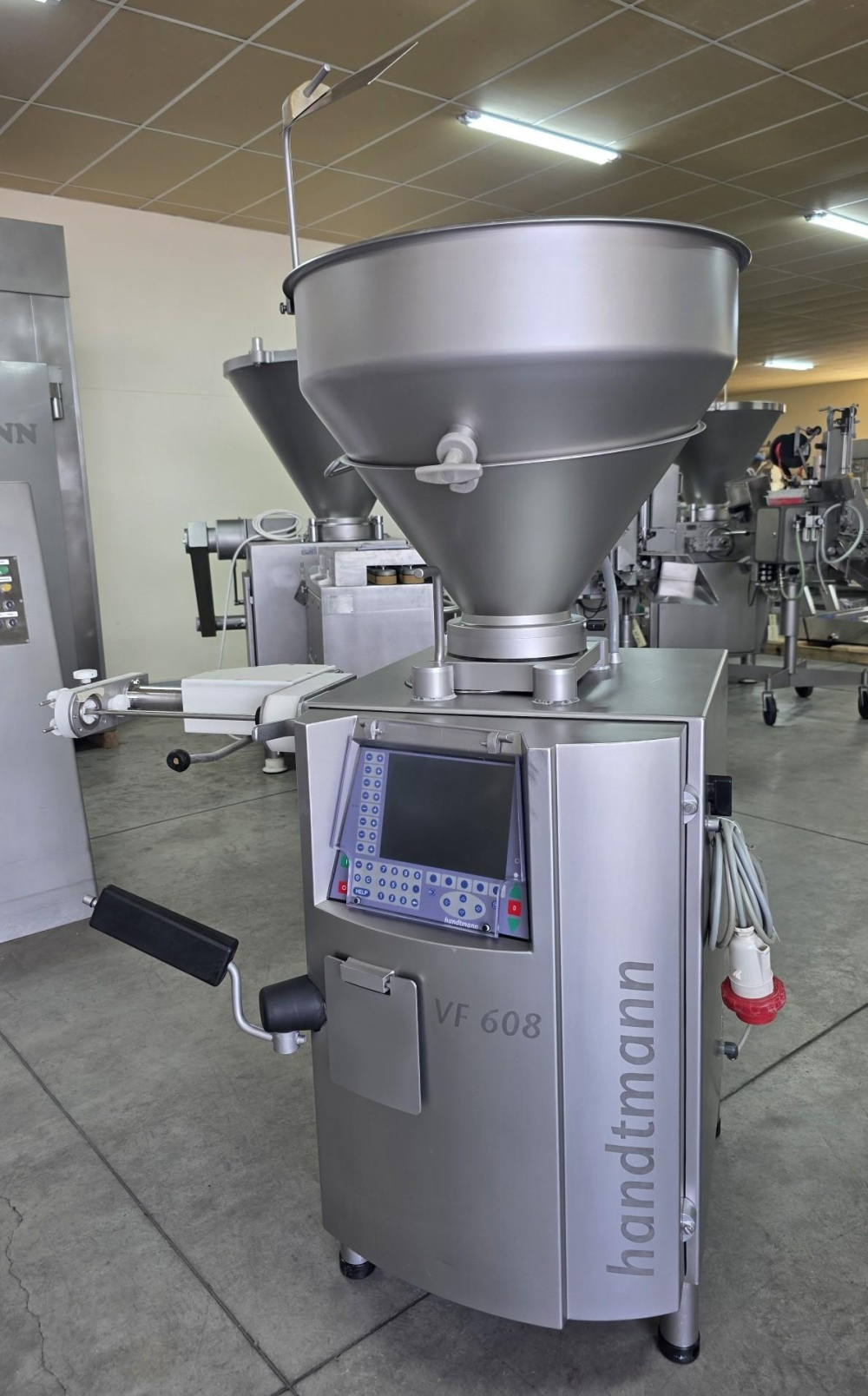

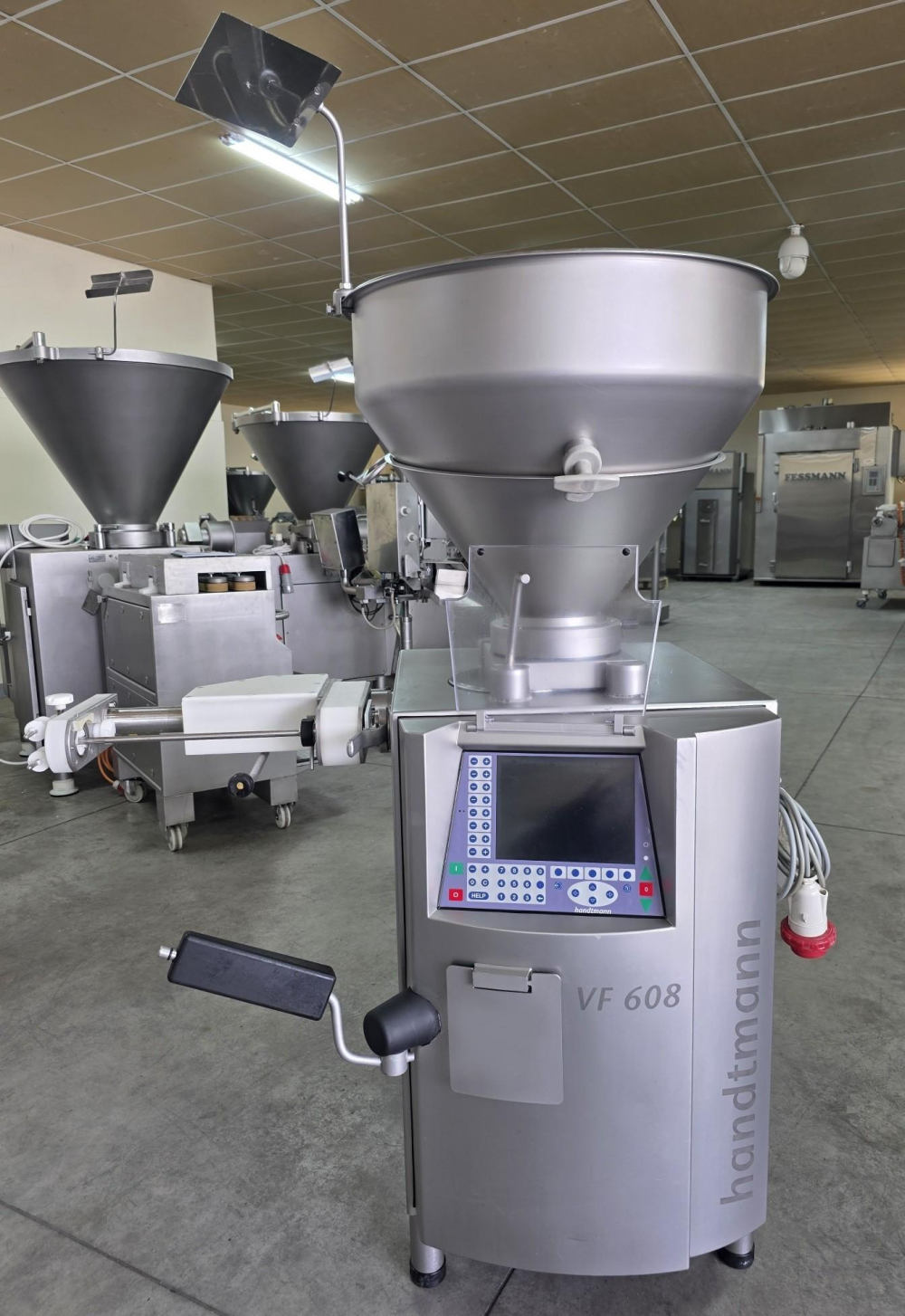

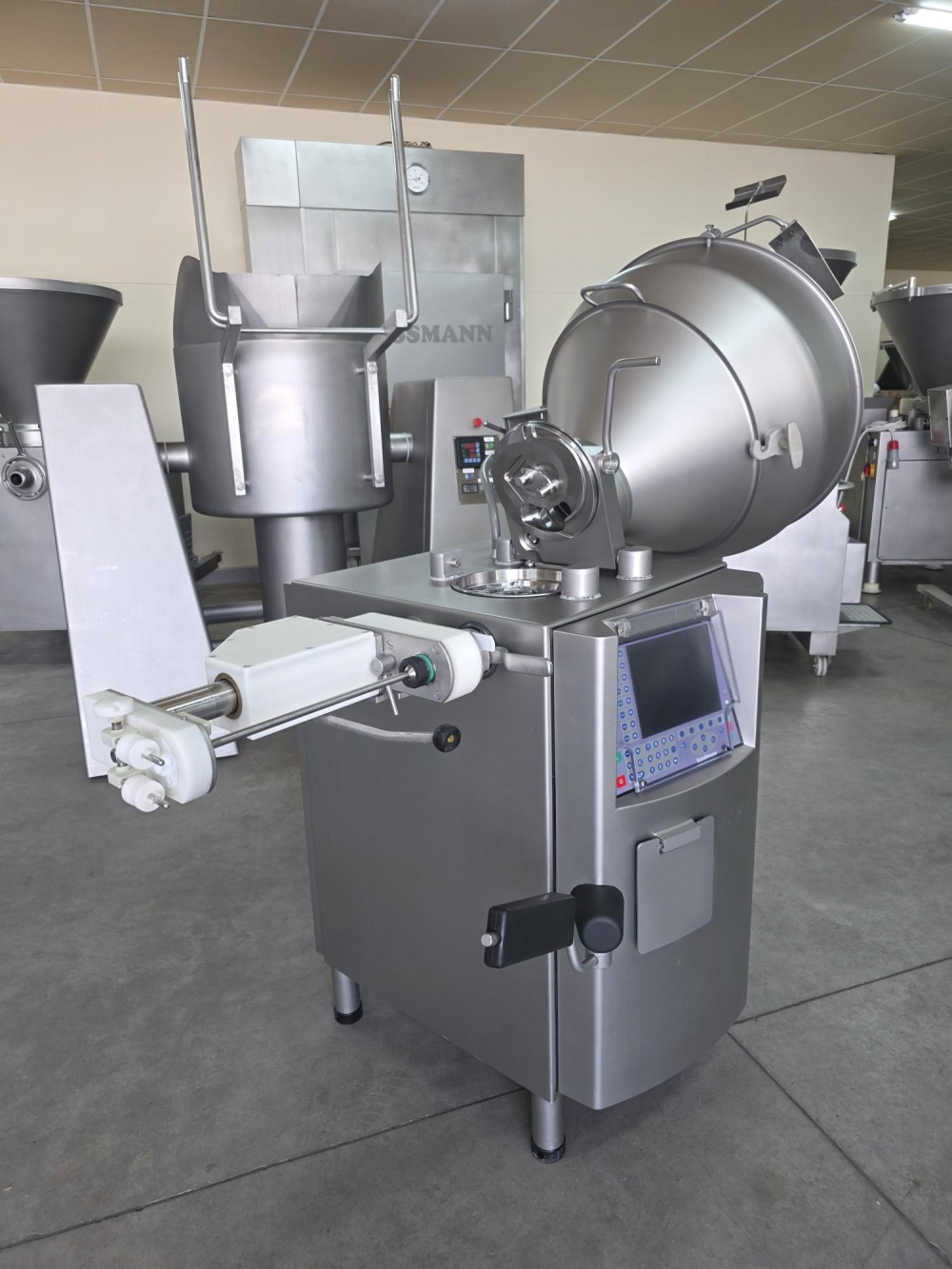

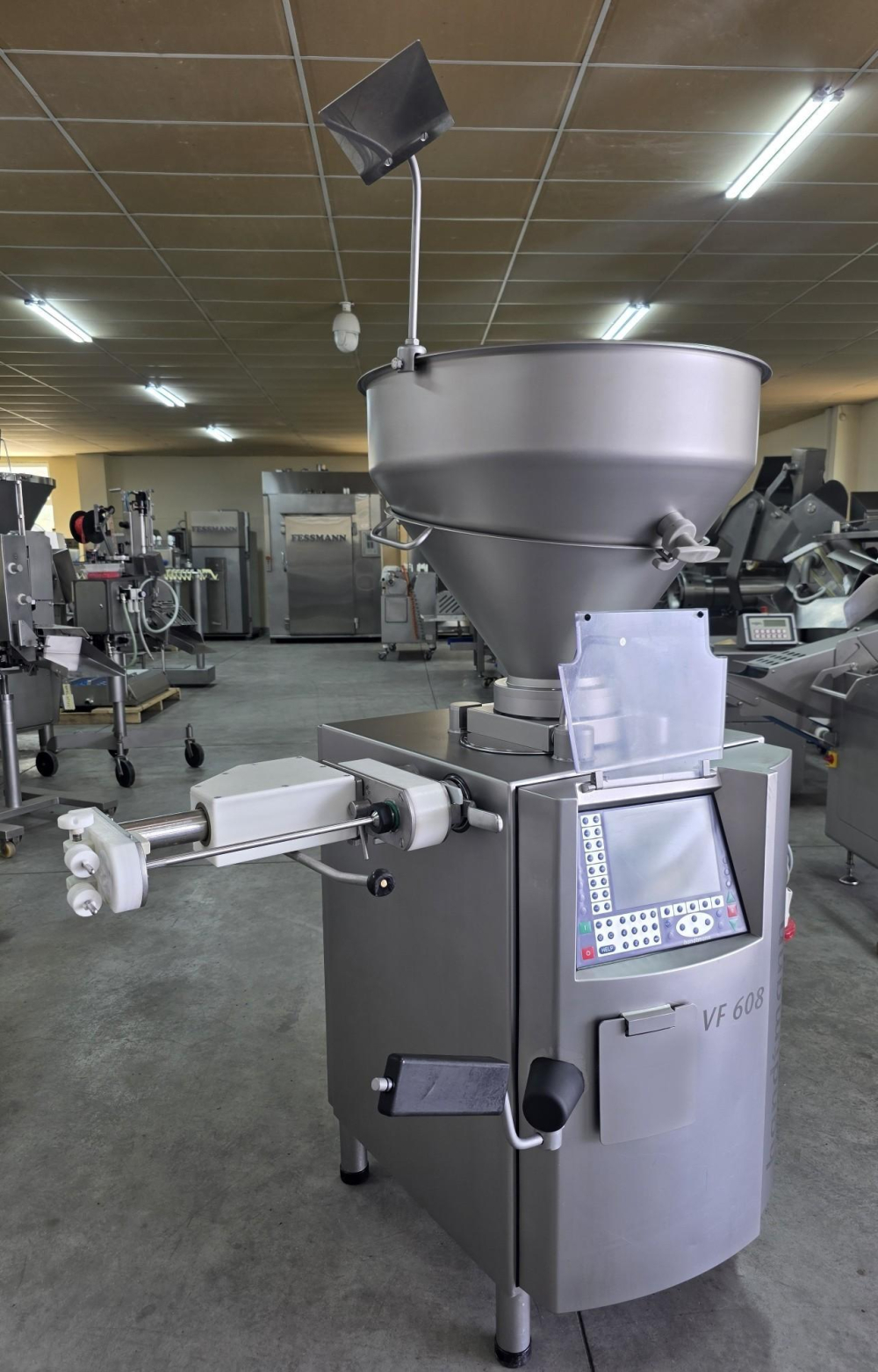

HANDTMANN VF 608

Continuous vacuum filler for straight filling and portioning

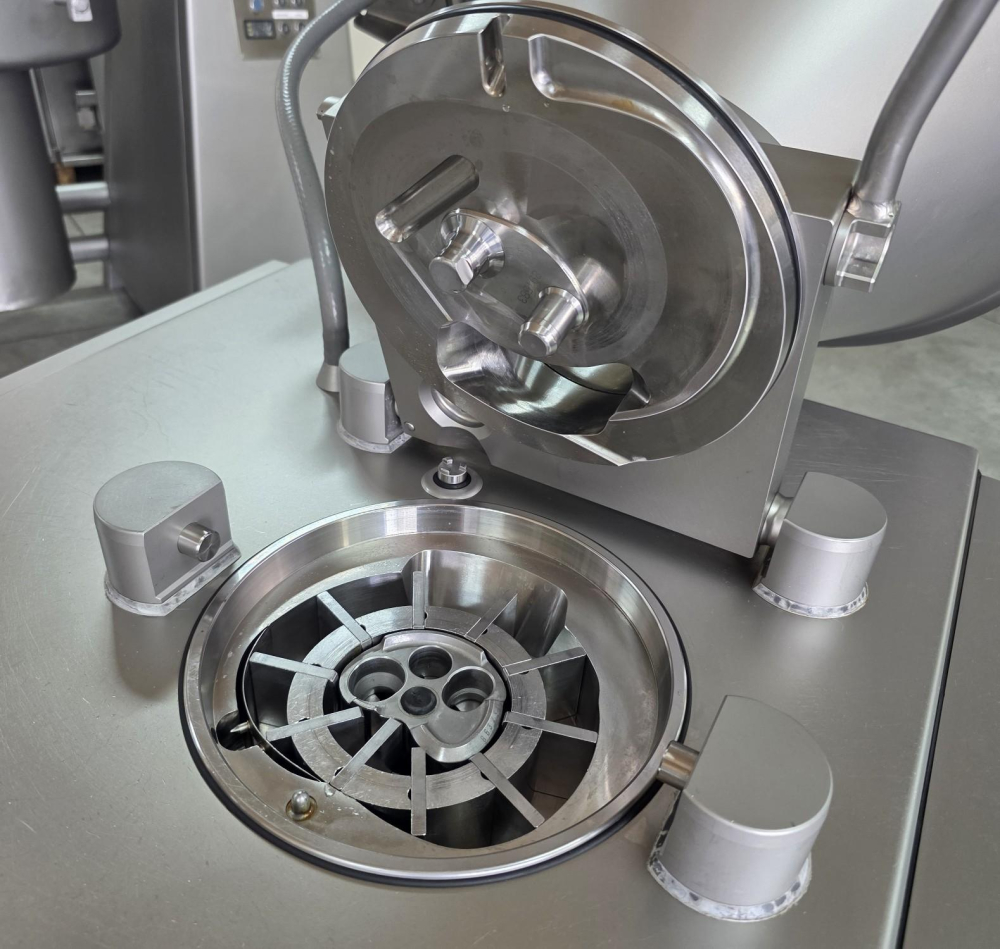

Filling mechanism: with rotary vane pump with 10 sliding rules, standard

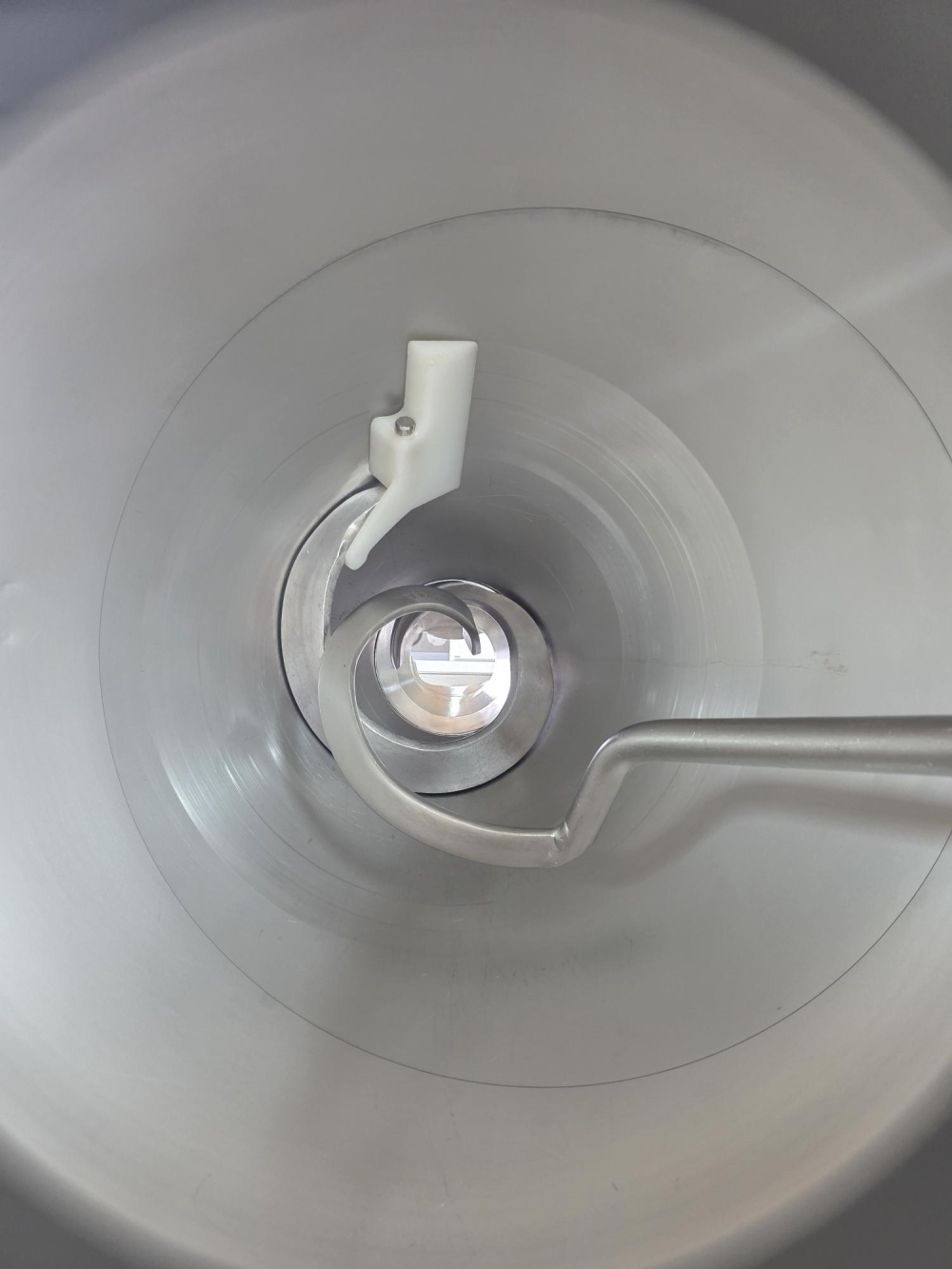

Hopper approx. 100 liters,

Built-in vacuum pump and circulation greasing

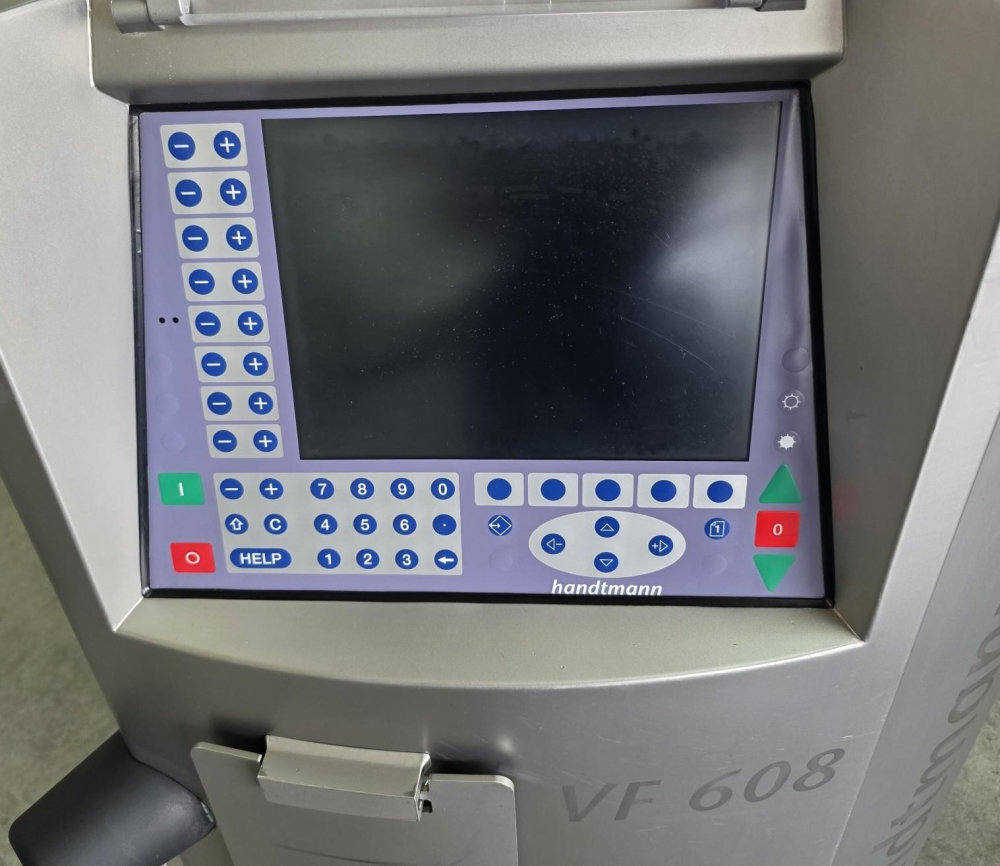

Built-in portioning computer РС

Portion weight: 5 – 200.000 gr

Adjustable clips-impulse

Adjustable reverse suction

Portioning and linking capacity up to 400 portions/ minute

Steplessly adjustable filling speed

Filling pressure up to 25 or 40 bar

Filling capacity up to 2,000 kg/h

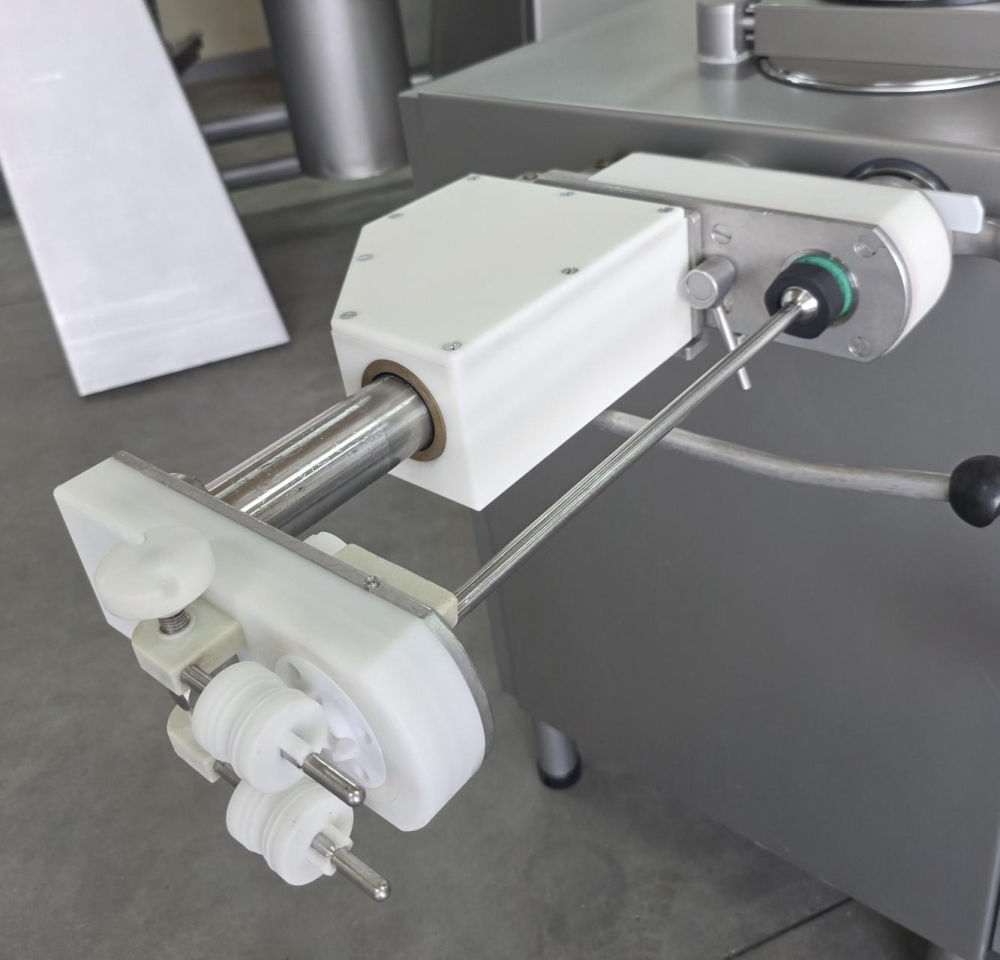

Holding device

For all conventional types of casing: natural casing, overlapped natural casings, collagen casings, peel-off casings and closed-end casings.

Installed power: 3,0 kW

Voltage: 400 V, 50 Hz

 Weight: approx 475 kg
